JM19
JAGANUSA JM19 is more than just transport, it is a lifeline for island communities. It solves the logistical challenges of inter-island evacuation while functioning as a fully operational floating ICU, ensuring that critical care begins the moment the patient is on board.
The JM19 represents a pivotal innovation in healthcare, specifically designed for archipelagic regions. Beyond providing a practical solution for inter-island medical evacuation to advanced facilities, this vessel serves as a critical Floating Intensive Care Unit (ICU), delivering life-saving treatment during high-stakes emergencies.
However, the challenge extends beyond just medical care, it is about access. Faced with the complex geography of coastal zones, small island clusters, and isolated regions, a systematic strengthening of our maritime capacity is required. By deploying this vessel, we ensure the continuity of sustainable humanitarian missions, creating a profound and positive impact on the safety and well-being of surrounding communities.
Max Speed
Operational Range
Crew Ergonomics
Vessel Agility
JM19 Ship’s Particulars
| Description | Specification |
|---|---|
| Hull Construction | Marine Grade Aluminium |
| Length Over All (LOA) | 19.00 Meters |
| Length at Waterline (LwL) | 16.80 Meters |
| Beam Overall (incl. Collar Tube) | 4.20 Meters |
| Depth | 1.43 Meters |
| Draft | 0.80 Meters |
| Fuel Tank Capacity | 2,500 Liters |
| Maximum Speed | ≥ 30 Knots |
| Crew & Passengers | 3 Crew + 9 Passengers |
| Service Speed | Approx. 15-20 Knots |
| Operational Range | Approx. 350 Nautical Miles |

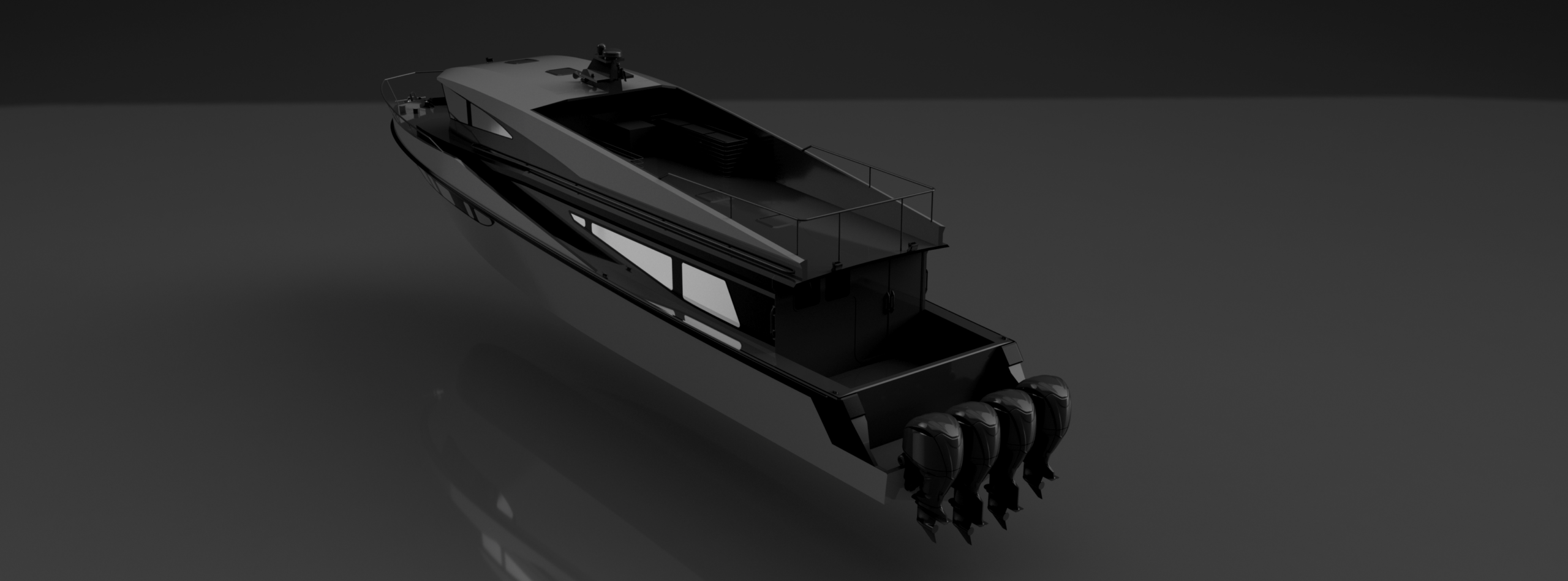

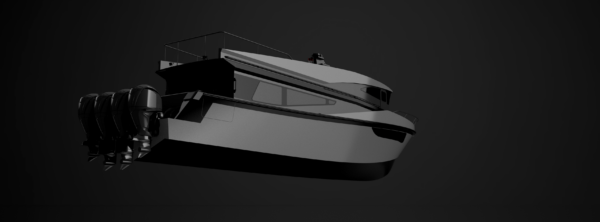

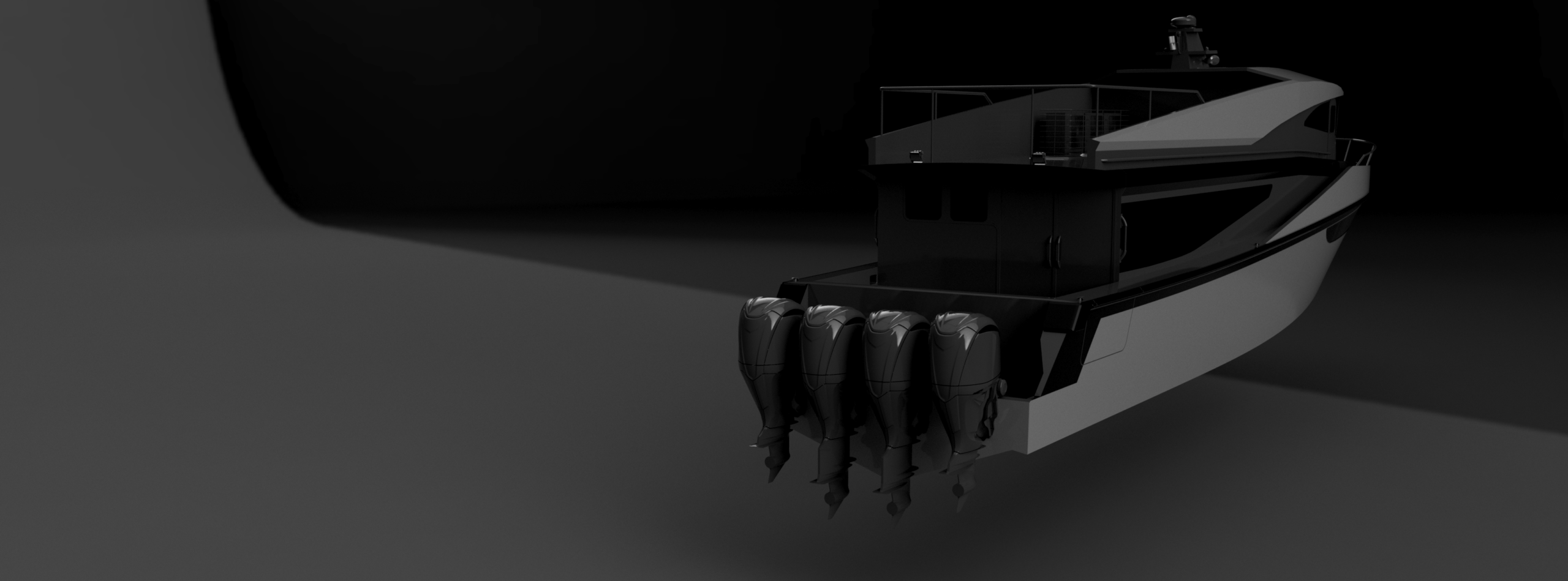

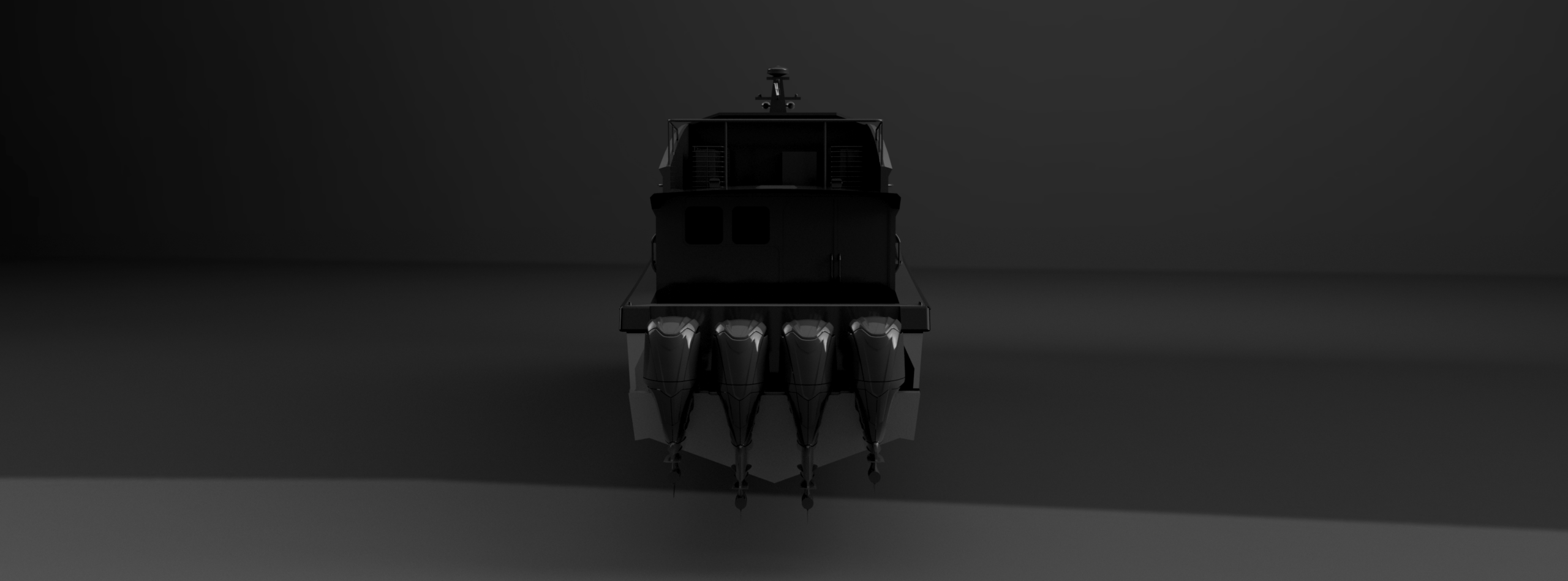

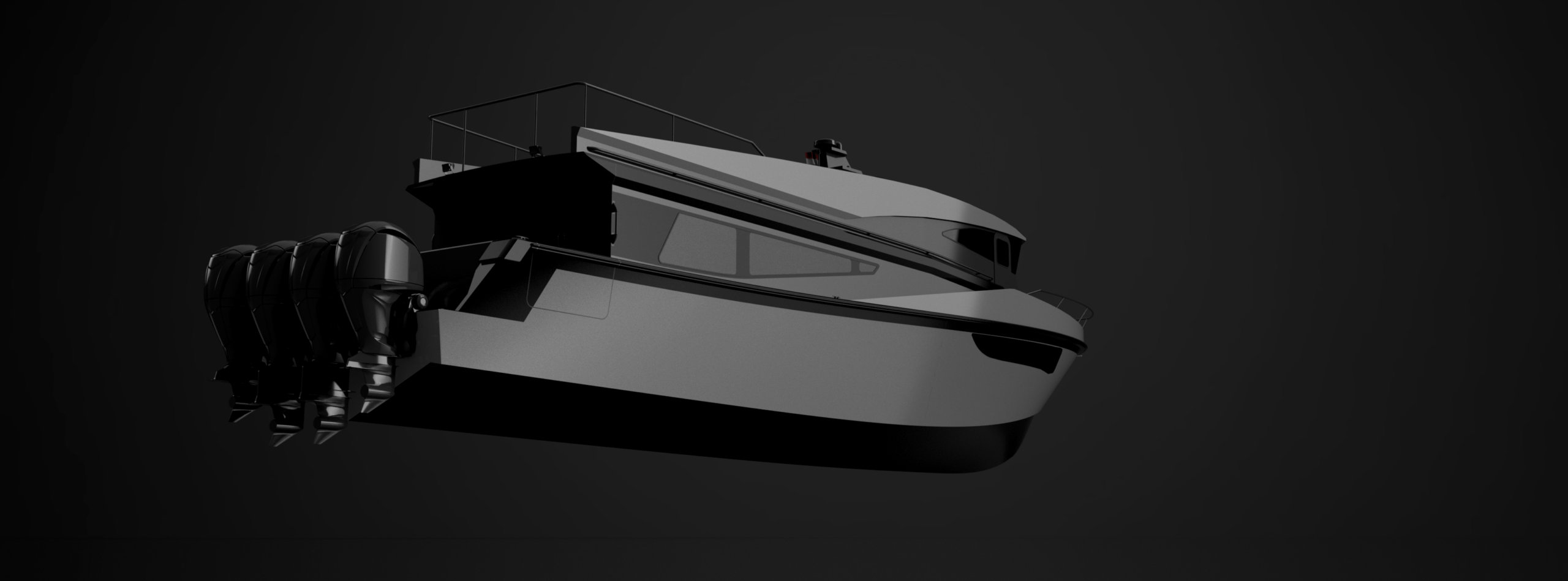

| Main Engine | 4 x 300 HP Gasoline Outboard Motors (OBM) |
Product Descriptions
This is not just a vessel, it is a lifeline. Designed to bring comprehensive medical care to the most remote waters, our onboard facilities mirror the capabilities of a modern hospital.
It begins in the ER and Trauma Centre. Here, in the IGD, every second counts. We have equipped this space for rapid emergency response and immediate stabilization, ensuring that critical care is never out of reach.
But our mission goes beyond emergencies. The dedicated Medical Check-Up Station, or MCU, provides essential health screenings and preventative diagnostics.
Supporting these decisions is our fully operational onboard Laboratory. This facility delivers immediate testing and analysis, giving our medical team the data they need, right when they need it.
And because healing is a journey, we have integrated a specialized Rehabilitation Unit. This space is dedicated to physical therapy and recovery, ensuring patients receive support from the moment of rescue to the path of recovery.
Advanced care. Anywhere. Anytime. JM19 Bridging the gap in maritime healthcare.
